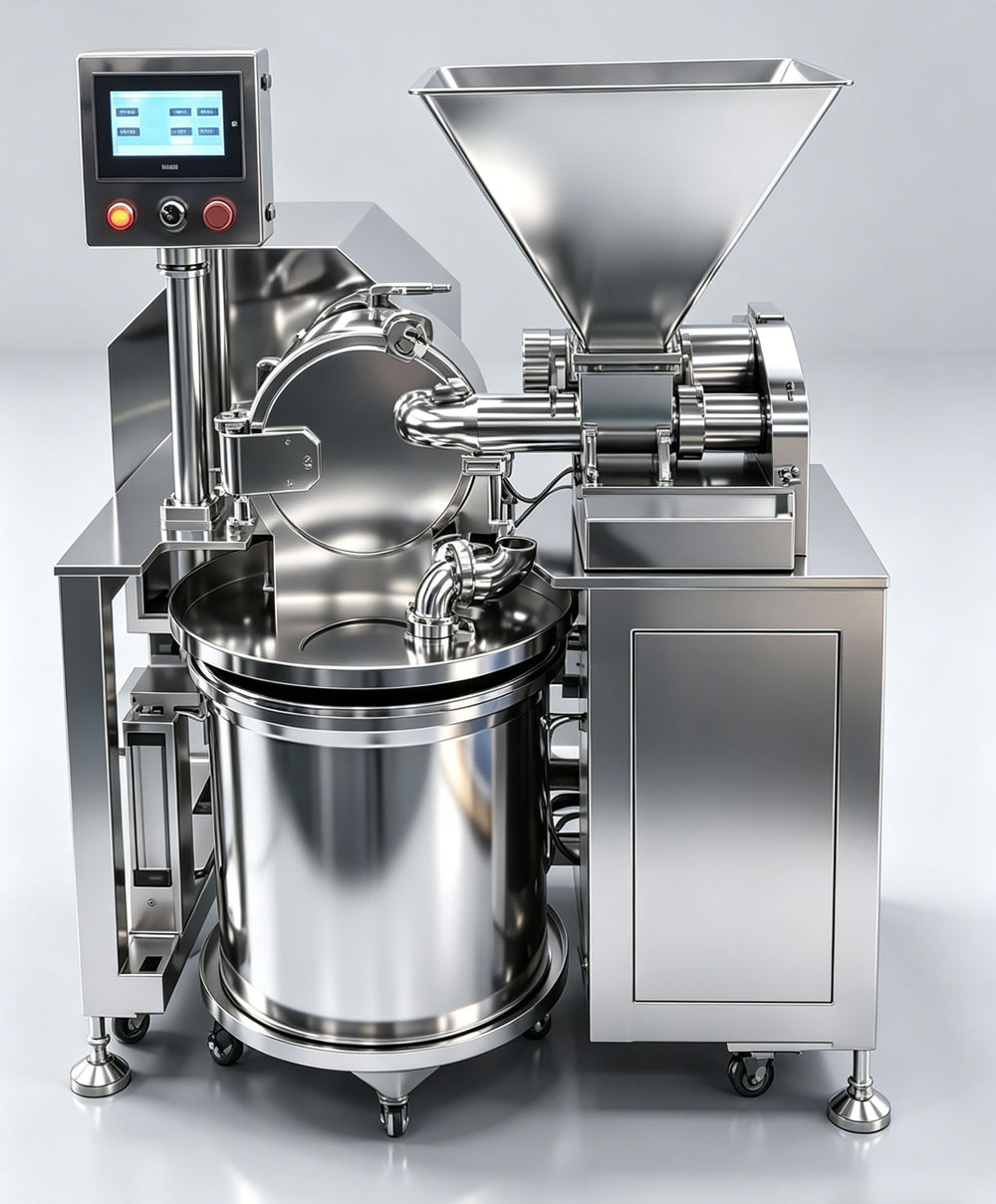

ultra-fine powder pulverizer
- LeRouge ultra-fine grinder features SUS304 construction and 6500 RPM speed. Integrated with screw feeding and water-cooling, it delivers up to 250kg/h output with 40-120 mesh fineness
Contact Us
- Product Function
- Product Images
- Technical Features
- Key Components
1. Dimensions: 1200mm x 1135mm x 1475mm
2. Material: Stainless steel. The material tank frame and parts in contact with the raw materials are all made of stainless steel (304).
3. Weight: 470kg
4. Power Supply: AC380V/3Φ/50Hz. Power: 6 KW.
5. Screw feed speed is variable frequency. Feed rate: 4kg/min. Powder hopper capacity: 20kg per load.
6. Main unit grinding speed is variable frequency. Maximum speed: 6500 rpm.
Main unit casing has a water circulation cooling system.
7. Lifting cylinder for receiving the powder hopper.
8. Output: 150-250kg/hour.
9. Fineness: 40-120 mesh
10. LPC and touch screen control system, digital parameter settings.
