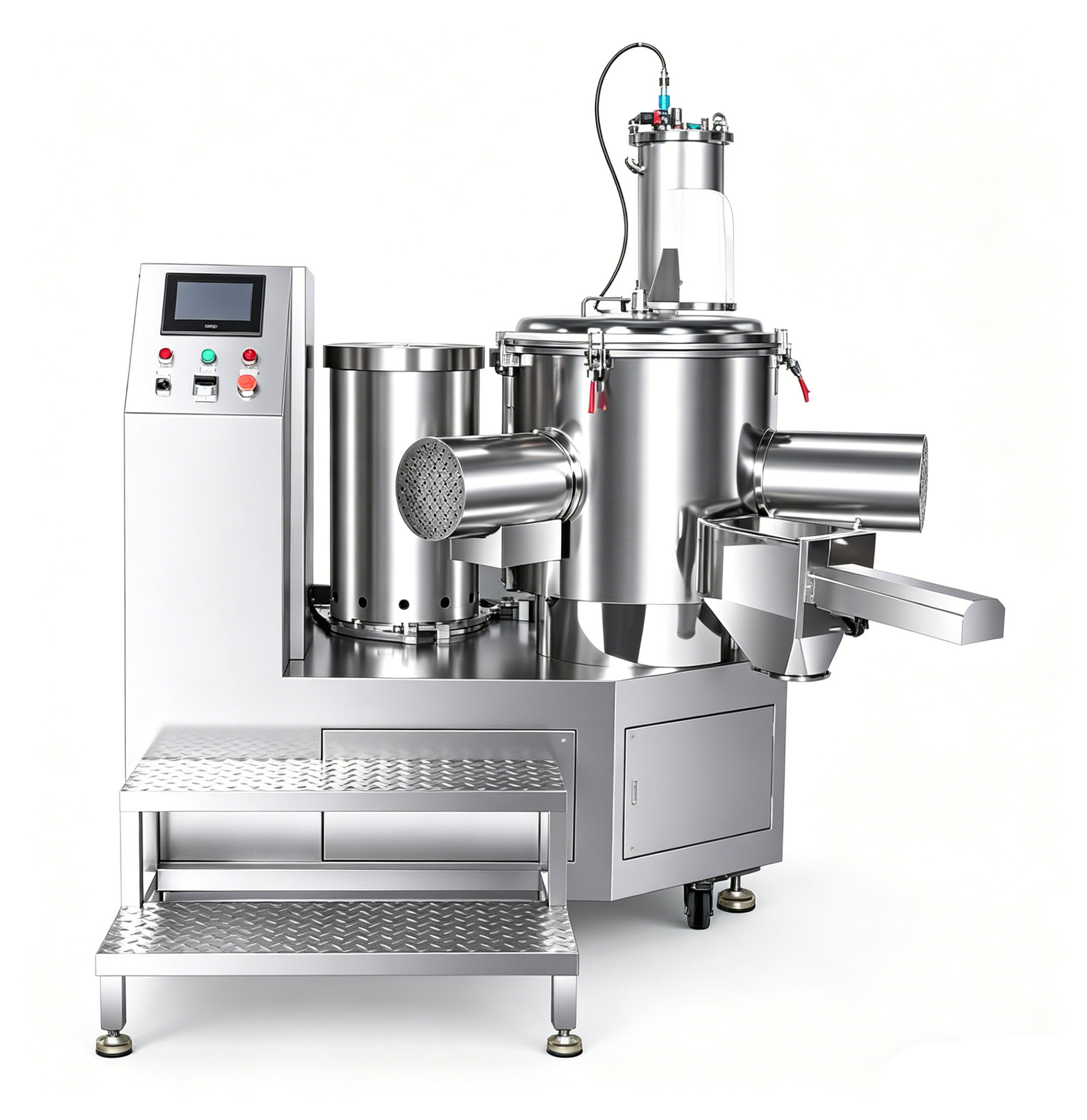

100L three-axis Side Printing and Developing Machine
- LeRouge 100L 3-axis powder developer features a 15KW Siemens motor and SUS304 water-cooled tank. With Japanese oil nozzles and fixed high-speed side impacting, it processes 15-25kg per batch for premium finish
Contact Us
- Product Function
- Product Images
- Technical Features
- Key Components
Vessel/tank: 100L capacity with double-layer water jacket for cooling. Material: SUS304 stainless steel.
Main Motor: 15kW; rated speed 2,800 RPM. Equipped with Variable Frequency Drive (VFD) for speed adjustment.
Tri-axial Side Choppers: 2.2kW per motor (Total 3 motors). Fixed speed at 2,800 RPM.
Operation: Pneumatic lid opening and pneumatic discharge (Components: Airtac, Taiwan).
Oil Spraying System: Pneumatic atomization using imported nozzles from Japan.
Control System: PLC & Touch Screen control. (Delta PLC & Xinje HMI with Bilingual Chinese-English interface).
Power Supply: AC 380V, 3-Phase, 50Hz; Total Power: 23kW.
Air Source: 5–6 kg/cm² (Compressed air requirement).
Machine Weight: 1,070 kg.
Motor Brand: Siemens.
Key Components: * VFD: Delta (Taiwan).
Pneumatic Components: Airtac (Taiwan).
Processing Capacity: 15–25 kg per batch (Depending on powder density).
